Circular Loom Shuttle Pusher Assembly SYZ-6S
Introduce of Circular loom:
SBY series circular lloom, which adopts the SCM (Single Chip Microcomputer), carry out centralized control to the system; the parameter is set up and changed on HMI (Human Machine Interface). Main motor and take-up motor are respectively driven by dual inverters. The system can change and update the data in time, reaching high accuracy and move ahead simultaneously.
SCM control and dual-inverter drive. The data are transmitted at a high speed, high precision control, as well as the strong ability of anti-interference. By adopting the Human Machine Interface, the modification and settlement of the parameters can all be run on the HMI, which simplified the operation process and improved the precision of controlling.
Specification:
| No. | Name | Model |

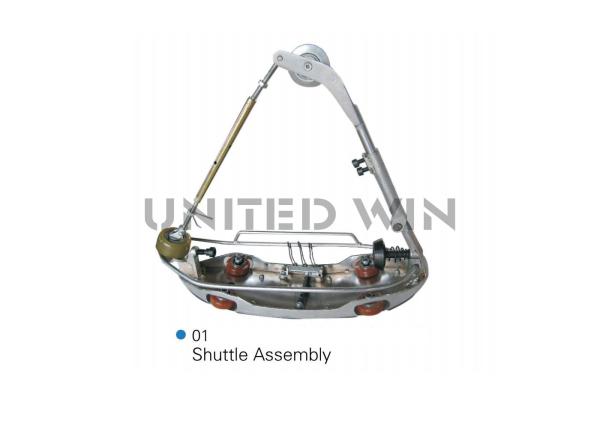

| 1 | Shuttle Assembly | 1011X-01-HF |
| 2 | Shuttle Body | JO11X-01 |
| 3 | Shuttle plate | J011X-12 |
| 4 | Fore-End Of Shuttle Arm | 011X-16/02 |
| 5 | Rear-End Of Shuttle Arm | J011X |
| 6 | Top Adjusting Bolt | JO11-065 |
| 7 | Bottom Adjusting bolt | JO11-24 |
| 8 | Extension Bar | J011X-16/02A |
| 9 | Guide Wheel | JO11-65 |
| 10 | Front Sleeve | JO11X-20 |
| 11 | Front Bobbin Axle | J011X-13-16/01 |
| 12 | Back Axle | J011-Z13 |
| 13 | Axle of Brake Jaw | J011X-04 |
| 14 | Wheel Spacer | J011X-01-J01 |
| 15 | Adjusting Plate | J011X-15-HF |
| 16 | Washer | J011X-16-HF |
| 17 | Sleeve | 03-035-15 |
| 18 | Limit Sleeve | 03-035-14 |
| 19 | Stationary Sleeve | 03-035-17 |
| 20 | Spacer Sleeve | J011-09 |
| 21 | Sheel Axle | J011-008 |
| 22 | Rolling Wheel | OSG SDL-05G |
| 23 | Ring For Rolling Wheel | 6SG SDL-06G |
| 24 | Washer Under Rolling Wheel | 6SG SDL-04G |
| 25 | Rolling Wheel | J011X-11 |
| 26 | Bottom Wheel | 6SG SDL-32 |
| 27 | Shuttle Wheel | J011-15 |
Company Introduce:
Our company is a professional manufacturer and exporter with design, development and production of pp woven machines, non-woven machines, monofilament production line adhesive tape machine, multifilament extrusion intertwisting machine, circular looms and spare parts etc.
We are located in Changzhou ,Jiangsu prov.
All of our products comply with international quality standards,with set up local service branch office, customer praise rate reached 100%. more than 70% on market.
Equipped facilities and excellent quality control throughout all stages of production enables us to guarantee customer satisfaction.
Our sales network covers more than 60 countries and regions around the world.Our team is looking forward to building a successful relationship with the elites.
Application:
FAQ:
1: Are you trading company or manufacturer ?
A: We are factory.
2: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
3: Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
4: What is your terms of payment ?
30% T/T in advance ,balance before shipment.
